Tandem Scissor Lift Tables
XL Series Lift Tables with Tandem Scissors
Ideal for handling particularly long and bulky loads, the XL Series lifting platforms are available with load capacities and sizes on request to meet specific application requirements.
The XL Series' dual inline pantograph design combines extra platform length with high load capacities and ensures maximum stability during use.
The wide range of accessories and the various configuration options available allow a high level of customization.
XL Series lifting tables are designed to guarantee the highest quality and safety standards even when handling bulky loads.
XL Series Lift Tables safety features and equipment
- Safety distance between scissor legs (a)
- Sensing edge under the entire platform contour (b)
- Built-in mechanical safety chocks for maintenance operations (c)
- Toeguard band around the entire base (d)
- Emergency stop button on the control panel (e)
- Hold-to-run controls (operation by constant pressure)
- Rupture-valve on the hydraulic circuit (prevents table free fall in case of massive fluid spillage or hydraulic failure)
- Pressure relief valve (hydraulic overload relief)
- Compensated flow control valve (lowering speed control)
- Manual lowering recovery (from the power unit)
XL Series Lift Tables configuration options and customizations
- Structural sizing for concentrated, off-center or moving loads
- Package for intensive or heavy-duty applications
- Pivot points mounted on bearings
- Double acting or full-filling cylinders (a)
- Structural strengthening of the platform for the transit of vehicles and forklifts (b)
- Travel limit switches (c), encoder (d) and provisions for integration into automation systems
- External control unit (e)
- Selection of components from a range of major brands
- Customized valve assembly for applied equipment management
- Implementation for outdoor installation
XL Series Lift Tables technical data and standard features
- Lift Type: tandem in-line scissor lift table with electro-hydraulic drive
- Load capacity: customized on request (range from 200 kg to +80 t).
- Platform dimensions: customized on request
- Structural sizing: designed for distributed or partially concentrated loads
- Supply voltage: Three-phase 400V / 50Hz
- Control and auxiliary circuit voltage: 24 V
- Degree of protection: IP54
- Controls: portable control panel (Up button / Down button)
- Power unit: built-in or external (3m standard connection)
- Operation: up to 30 cycles/hour x 8 hours/day
- Service conditions: indoors +5°C / +40°C
- Scissor legs: contoured profile in solid metal
- Leg rollers: in solid steel
- Pivot points: all equipped with self-lubricating bushings
- Cylinders: single acting cylinders, chrome plated piston rod
- Hydraulic components: high-performance and heavy-duty components
- Standard packaging: on pallet + wrapping
XL Series Lift tables - ACCESSORIES
- Checker or striated non-slip platform surface; covering tops in stainless steel, aluminum or rubber
- Access or inspection hatch in platform top
- Bellow skirting under the platform
- Base supporting posts for closed platform
- Level adjusting posts on reinforced base
- Floor fixing plates or angles
- Forkable base, eyebolts or brackets for handling
- Wheeled base, stabilizers, push bar or handle

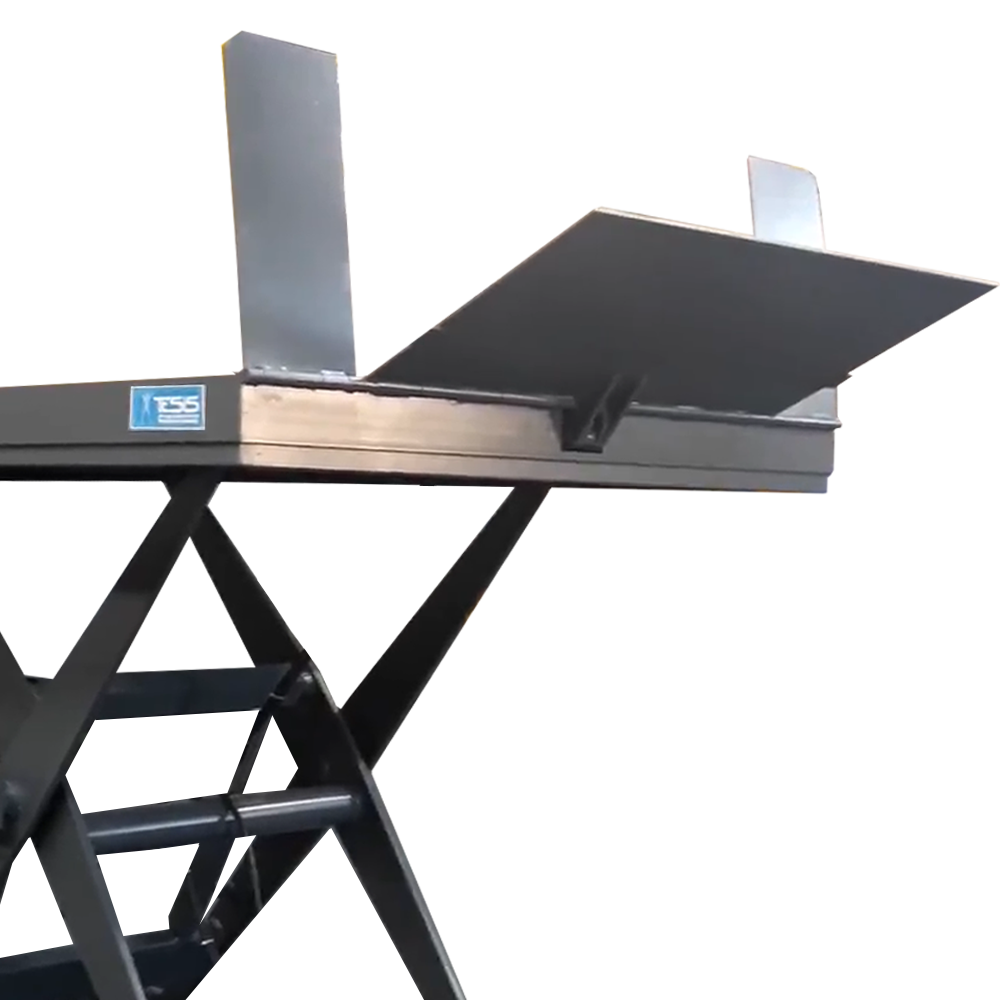

- Fixed or hinged side edges, approch ramps

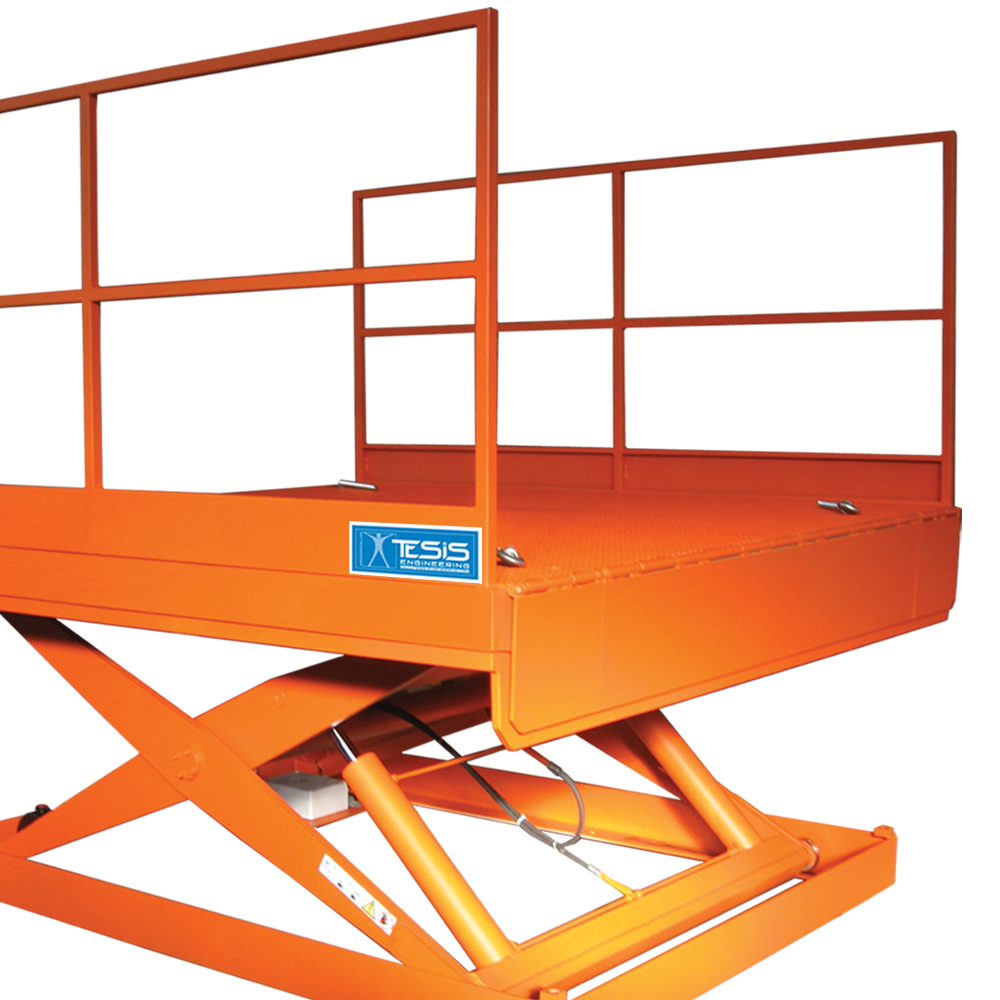

- Fixed or removable guard-rails, access gates
- Push-button panel with enabling key, wall-mounted push-button panel, foot controls, floor stand for push-button panel
- Special packaging, wood boxes and crates
